ART Multi-Purpose Assemblies

  • ART Multi-Purpose Assemblies

ART Multi-Purpose Assemblies

Item # Product Name
ART0250XXYYMM 1/4in MxM RT Multi-Purpose Assembly
ART0250XXYYQP 1/4in Quick-Connect RT Multi-Purpose Assembly
ART0375XXYYMM 3/8in MxM RT Multi-Purpose Assembly

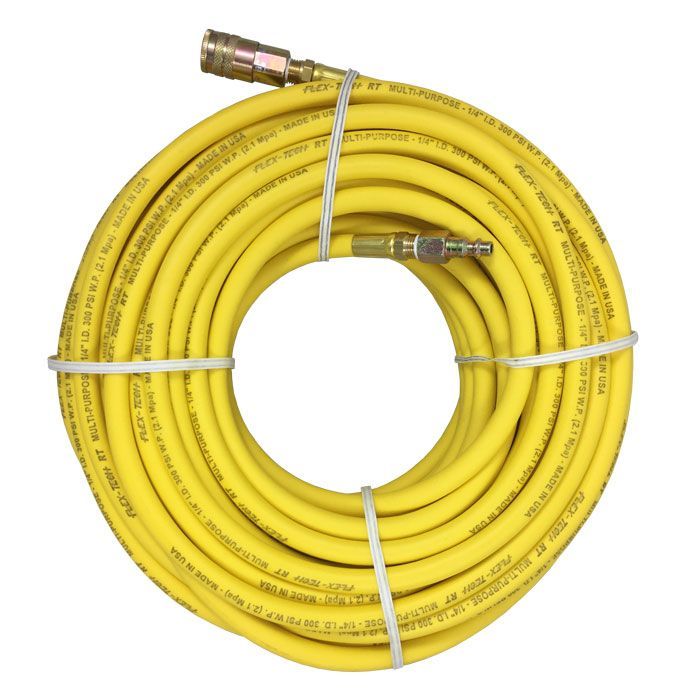

ART0375XXYYQP 3/8in Quick-Connect RT Multi-Purpose Assembly
ART0500XXYYMM 1/2in MxM RT Multi-Purpose Assembly
*For color replace "xx" with "BK" = black, "BL" = blue, "RD" = red, "YW" = yellow, "GR" = green
*For length replace "yy" with 25, 50 or 100

description

Details

The ART Series hose assemblies are a premium multi-purpose product for use in a variety of applications. The specially formulated thermoplastic provides a rubber-like look and feel at a fraction of the cost.

Potential Use

  • Heavy-duty commercial & construction use
  • Mulitipurpose applications
  • Air & water (up to 150°F)
  • Pnuematic tools in cabinet or mechanic shops
  • Air service for painting equipment/booths
  • Color coded coolant lines
  • General water service in industrial plants
  • Municipal maintenance and park departments
  • Irrigation supply lines
  • Farm and ranch maintenance

Features

  • UV & Ozone Resistant
  • Non-Marking Cover
  • Lightweight
  • Long continuous lengths
  • Silicone free tube & cover
  • Superior chemical resistance of PVC
  • Meets RMA (Class B) oil resistance
  • Heavy-duty brass fittings on each assembly
  • Quick Connect Couplers available as well as strain relief protectors
  • Outstanding value

Product Specifications

Additional Information

Tube Material Specially Formulated PVC Compound
Reinforcement High Tensile Strength Textile Cord
Cover Material Specially Formulated, Rubberized, PVC Blend
Standard Colors Red, Yellow, Blue
Temperature Range -15◦ F (-26◦ C) to 150◦ F (65◦ C)
Fittings Available MNPT or Quick/Plug
Phthalate Free Yes
RoHS Compliant Yes
Certification
Standard Size(s) 1/4in - 1/2in
Working Pressure 300 psi
Safety Factor 3:1 or 4:1 depending on size
Standard Length(s) 25, 50, 75 100 ft coils
Weight per foot Varies by size and length
Assembled Yes, up through 1/2"

Item Details

SKU
ART0250XXYYMM
ART0250XXYYQP
ART0375XXYYMM
ART0375XXYYQP
ART0500XXYYMM
Standard Size(s) O.D. Working Pressure Safety Factor Standard Length(s) Bend Radius (in) Weight (Lbs) Stocked Assembled
1/4in 0.500in 300 psi 4:1 25, 50, 100 ft Coils 0.63in 0.09 See table below or check individual product page Yes, up through 1/2"
1/4in 0.500in 300 psi 4:1 25, 50, 100 ft Coils 0.63in 0.09 See table below or check individual product page Yes, up through 1/2"
3/8in 0.595in 300 psi 4:1 25, 50, 100 ft Coils 1in 0.1 See table below or check individual product page Yes, up through 1/2"
3/8in 0.595in 300 psi 4:1 25, 50, 100 ft Coils 1in 0.1 See table below or check individual product page Yes, up through 1/2"
1/2in 0.750in 300 psi 3:1 25, 50, 100 ft Coils 1.5in 0.15 See table below or check individual product page Yes, up through 1/2"

Downloads

This product does not have any manuals or documents at this time.
