ARTW Industrial Grade Water Assemblies

  • ARTW Industrial Grade Water Assemblies

ARTW Industrial Grade Water Assemblies

Item # Product Name
ART0500XXYYGMF 1/2in M x F Water Hose Assembly
ARTW0625XXYYMF 5/8in M x F Water Hose Assembly

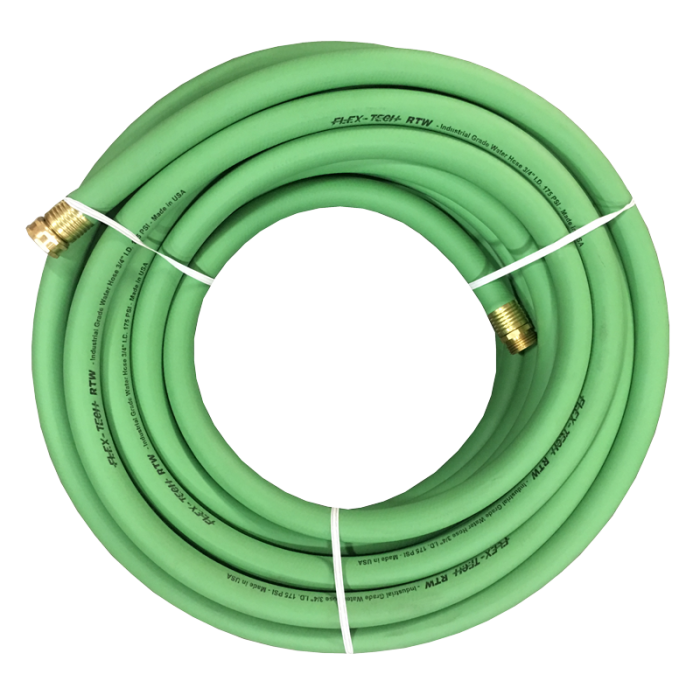

ARTW0750XXYYMF 3/4in M x F Water Hose Assembly
ART1000XXYYGMF 1in M x F Water Hose Assembly
*For color replace "xx" with "BK" = black, "B" = black "RD" = red, "GR" = green
**For length replace "yy" for length with 25, 50, 75 or 100 ft

description

Details

The ARTW Series hose is a premium multi-purpose product for use in a variety of water supply and transfer applications. The specially formulated thermoplastic provides a rubber-like look, feel and long lasting durability at a fraction of the weight and cost. The industrial full-flow brass fittings won't leak or corrode like many of the lower cost alternatives out on the market today.

Potential Use

  • Heavy-duty Commercial and Construction Use
  • General Water Service in Industrial Plants
  • Municipal Maintenance and Park Departments
  • Irrigation Supply Lines
  • Heavy-duty Wash-down
  • Fram/Ranch Maintenance

Features

  • RMA Class B Oil Resistance
  • Rubberized Thermoplastic for enhanced flexibility
  • Exceptional Abrasion Resistant Cover
  • Excellent Resistance to Weather and Aging
  • Heavy-Duty Fittings Full-Flow on Each Assembly
  • Outstanding Value

Product Specifications

Additional Information

Tube Material Specially Formulated PVC Compound
Reinforcement High Tensile Strength Textile Cord
Cover Material Specially Formulated, Rubberized, PVC Blend
Standard Colors Red, Green and Black
Temperature Range 15◦ F (1.7◦ C) to 150◦ F (65◦ C)
Fittings Available Full Flow MxF Garden Hose (1/2"-3/4"), 1" NPSH MxF (1")
Phthalate Free No
RoHS Compliant Yes
Certification
Standard Size(s) 5/8" & 3/4" ARTW, 1/2" & 1" ART
Working Pressure 175 psi
Safety Factor 3:1
Standard Length(s) 25, 50, 75, 100 ft coils
Weight per foot Varies by size and length
Assembled Yes

Item Details

SKU
ART0500XXYYGMF
ARTW0625XXYYMF
ARTW0750XXYYMF
ART1000XXYYGMF
Standard Size(s) O.D. Working Pressure Safety Factor Standard Length(s) Bend Radius (in) Weight (Lbs) Stocked Assembled
1/2in 0.750in 200 psi 3:1 25, 50, 75, 100 ft coils 3in 0.15 Yes Yes
5/8in 0.855in 175 psi 3:1 25, 50, 75, 100 ft coils 3in 0.16 Yes Yes
3/4in 1.015in 175 psi 3:1 25, 50, 75, 100 ft coils 3.5in 0.214 Yes Yes
1in 1.090in 200 psi 3:1 50, 75, 100 ft coils 3.5in 0.43 Yes Yes
