Marine/RV Hose

  • Marine/RV Hose

Marine/RV Hose

Item # Product Name
MRV-06CW-00 3/8in Bulk Marine/RV Hose
MRV-08CW-00 1/2in Bulk Marine/RV Hose
MRV-10CW-00 5/8in Bulk Marine/RV Hose
.

description

Details

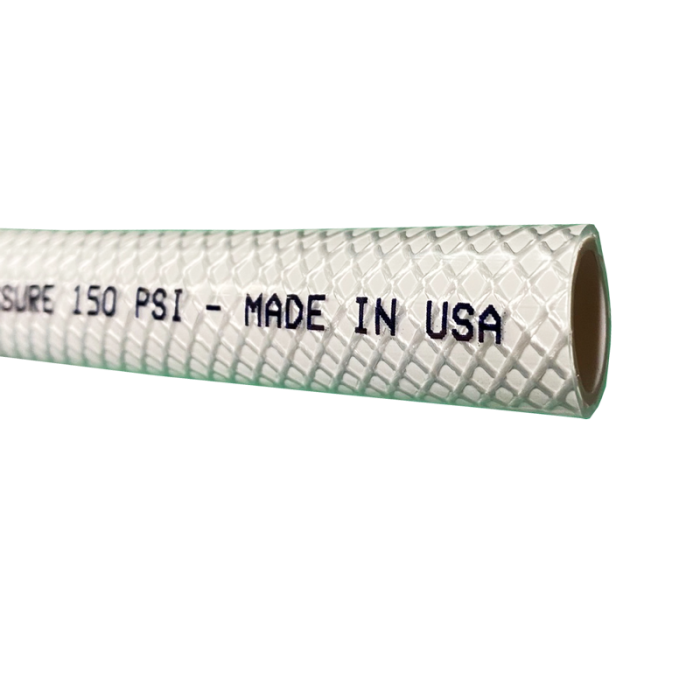

Flexible reinforced PVC kink-resistant hose manufactured from carefully selected materials that comply with IAPMO TS-25, FDA and NSF/ANSI-61.

Potential Use

  • RV cold water, plumbing, & marine connections
  • Cold water transfer
  • Drinking water plumbing
  • Deionized water
  • Cold water manifold connection
  • Potable water delivery pump connections
  • Cold water risers
  • Light-duty washdown

Features

  • Tube made from NSF/ANSI-61 listed materials for water contact
  • Certified by IAPMO to TS-25 Standard for Reinforced Hose for use in Recreational Vehicle Pressurized Cold Water Systems
  • Water contact materials contain no substances designated as hazardous under California Proposition 65
  • When coupled properly, hose will pass IAPMO proof test requirement of 300 psi at 73◦F for 48 hours
  • Lightweight with superior flexibility

Product Specifications

Additional Information

Tube Material White Drinking Water Safe PVC Compound
Reinforcement High Tensile Strength Synthetic Yarn
Cover Material Clear FDA Compliant PVC Compound
Standard Colors Clear cover with white tube, other colors available by special order
Temperature Range 25◦ F (-4◦C) to 125◦ F (52◦ C)
Fittings Available Drinking Water Safe, Full Flow MxF Garden Hose Fittings
Phthalate Free No
RoHS Compliant Yes
Certification Conforms to IAPMO TS25
Standard Size(s) 3/8in - 5/8in
Working Pressure 150 psi
Safety Factor 3:1
Standard Length(s) 500 ft
Weight per foot Varies by size and length
Assembled Special Order

Item Details

SKU
MRV-06CW-00
MRV-08CW-00
MRV-10CW-00
Standard Size(s) O.D. Working Pressure Safety Factor Standard Length(s) Bend Radius (in) Weight (Lbs) Stocked Assembled
3/8in 0.565in 150 psi 3:1 500 ft 1.5in 0.079 Yes Special Order
1/2in 0.695in 150 psi 3:1 500 ft 3in 0.105 Yes Special Order
5/8in 0.845in 150 psi 3:1 300 ft 3.5in 0.14 Yes Special Order
