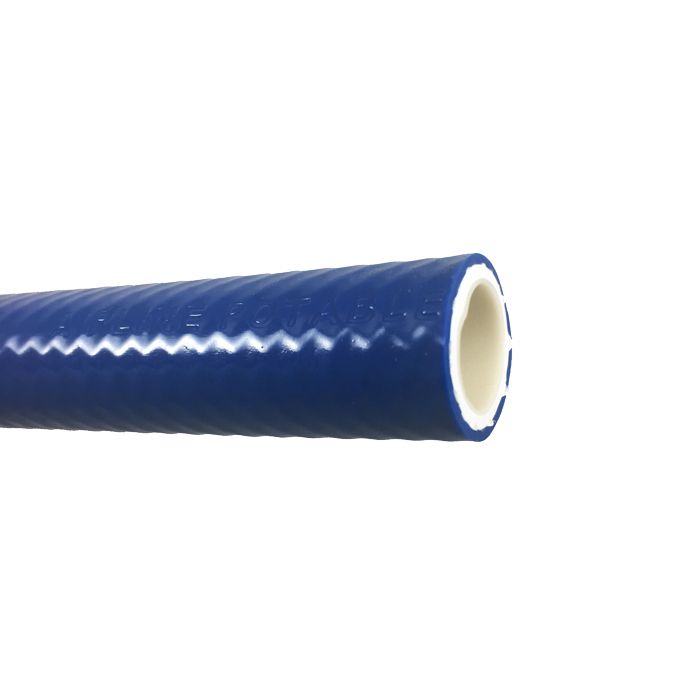

Potable Water Extreme drop Hose

  • Potable Water Extreme drop Hose

Potable Water Extreme drop Hose

Item # Product Name
H-PW0750BL-00 3/4in Blue Potable Water Extreme Hose
.

description

Details

The PW Extreme anti-microbial hose has been especially designed for potable water transfer applications including service in the aviation industry. The hose is manufactured from premium grade FDA and NSF/ANSI 61 listed materials. The compounds have been carefully selected for anti-microbial growth properties, bacteria resistance and extended service life.

Potential Use

  • Aviation industry terminal supply hoses
  • Marine / RV cold water supply
  • Water purifiers
  • Bulk water transfer lines where bacterial growth is a problem or concern
  • Farm and ranch livestock water supply lines
  • Veterinerian water lines for boarding kennels
  • Water supply lines for horses and equestrian centers
  • Potable water delivery pump connections

Features

  • Made from highly flexible, low temperature PVC for improved low temperature service
  • Bacterial- resistant liner will not support microbiological growth
  • Manufactured from NSF/ANSI 61 certified materials and specially formulated in compliance with applicable FDA regulations
  • Solid blue, non-marking cover to prevent light exposure to the liquids being conveyed
  • Spiral reinforced for extended service life

Product Specifications

Additional Information

Tube Material NSF/ANSI 61 listed PVC compound w/ smooth bacteria resistant Hytrel® liner
Reinforcement High tensile strength textile yarn
Cover Material NSF/ANSI 61 listed PVC compound - Non-Marking UV resistant Blue
Standard Colors Blue
Temperature Range 14◦F (4◦C) to 140◦F (65◦C)
Fittings Available Bulk
Phthalate Free No
RoHS Compliant Yes
Certification FDA Compliant, NSF/ANSI 61 Listed Materials
Standard Size(s) 1/4in - 3/4in
Working Pressure 250 psi
Safety Factor 3:1
Standard Length(s) 250 ft - 500 ft
Weight per foot Varies by size and length
Assembled No

Item Details

SKU
H-PW0750BL-00
Standard Size(s) O.D. Working Pressure Safety Factor Standard Length(s) Bend Radius (in) Weight (Lbs) Stocked Assembled
3/4in 1.100in 250 psi 3:1 250 ft 3.5in 0.27 Made to order No
